Qingdao Sinto Machinery Co., LTD
Q2605-AB-08

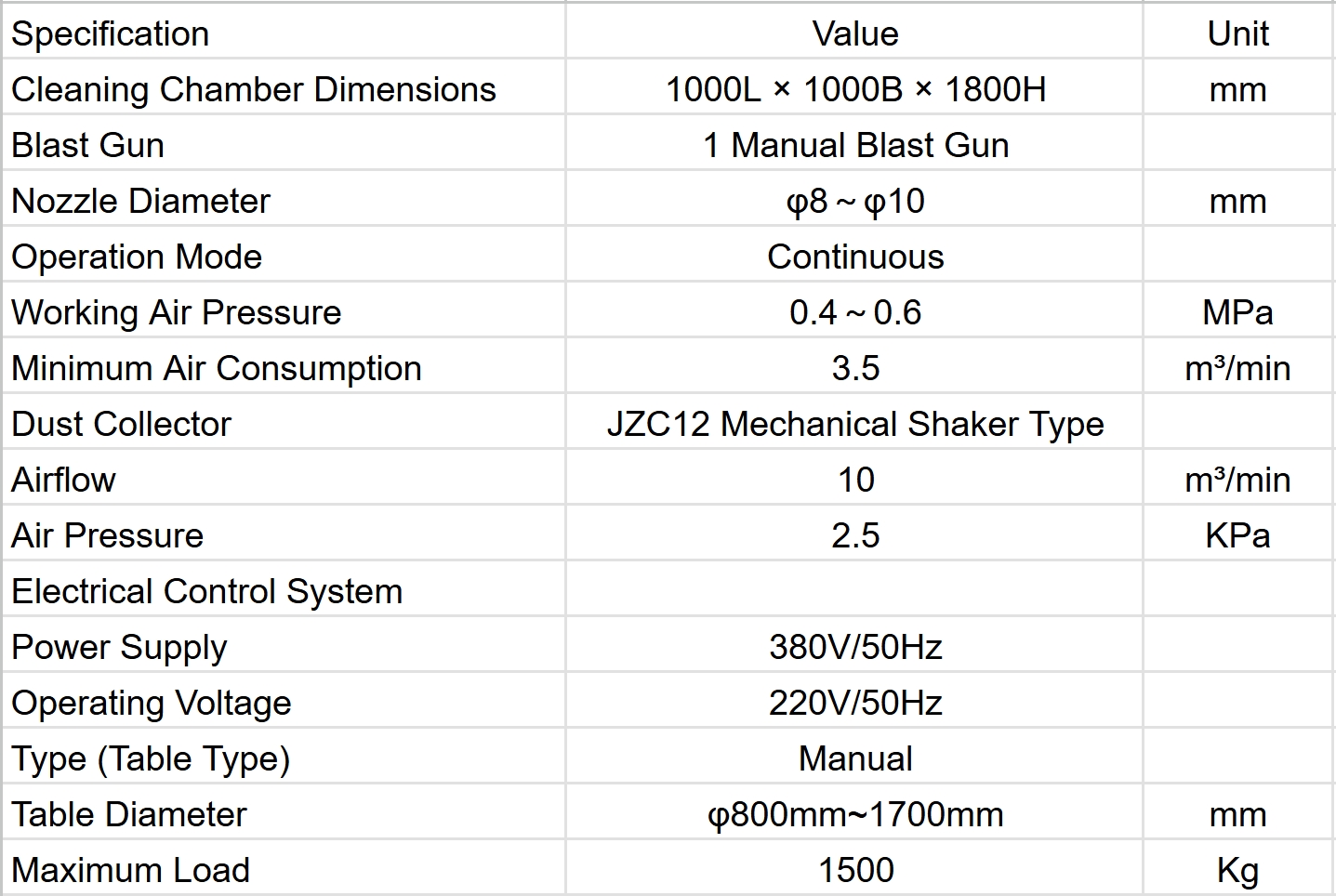

Equipment Features: Gravity-Fed and Venturi Mixing: Employs a gravity-fed and venturi mixing method to accelerate abrasive particles with the airflow, resulting in a high solid-to-air ratio and a large volume of abrasive flow. Visual Inspection and Easy Cleaning: Equipped with an internal light for improved visibility and a viewing window for clear observation of the operating process and workpiece cleaning status. A cleaning nozzle is included for convenient removal of residual dust from the workpiece. Compact Design and Simple Operation: This compact, benchtop-style blast machine features a streamlined design and easy-to-use operation. The blasting process can be controlled via both hand buttons and foot pedal. Technical Specifications: Cleaning Chamber Dimensions (mm): 1000L × 1000B × 1800H Blast Gun: 1 manual blast gun, nozzle diameter: φ8～φ10, continuous operation Working Air Pressure (Mpa): 0.4～0.6 Minimum Air Consumption (m³/min): 3.5 Dust Collector: JZC12 type mechanical shaker, airflow: 10m³/min, air pressure: 2.5Kpa Electrical Control System: Power supply: 380V/50Hz, operating voltage: 220V/50Hz Type (Table Type): Manual, table diameter: φ800mm~1700mm; maximum load: 1500Kg
Keywords:
Q2605-AB-08
Classification：
Air blasting machine
E-MAIL:
Business@sinto.cn
Equipment Features:
- Gravity-fed and Venturi Mixing: Employs a gravity-fed and venturi mixing method to accelerate the abrasive particles with the airflow, resulting in a high solid-to-air ratio and a large volume of abrasive flow.
- Visual Inspection and Easy Cleaning: Equipped with an internal light for improved visibility and a viewing window for clear observation of the operating process and workpiece cleaning status. A cleaning nozzle is included for convenient removal of residual dust from the workpiece.
- Compact Design and Simple Operation: This compact, benchtop-style blast machine features a streamlined design and easy-to-use operation. The blasting process can be controlled via both hand buttons and foot pedal.
